Product Details:
|
| Material: | Silicone | PL Film: | Sn Plating/Au Plating |
|---|---|---|---|
| Shape: | Flat Gasket,Ring Gasket, Corrugated Gasket,as You Need,according To Your Drawings | Wide: | 40mm Or Custom Size, As Drawing, Standard Or Customize |
| High: | 40mm Or Custom Size, As Drawing, Standard Or Customize | Length: | 50mm Or Custom Size, As Drawing, Standard Or Customize |
| Application: | Computers,wall And Roof, Automobile,LCD Etc | ||
| High Light: | flat conductive foam gasket,50mm conductive foam gasket,50mm conductive shielding gasket |
||

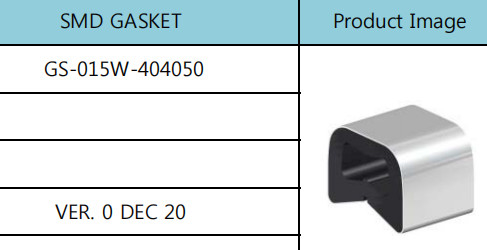

1. Part Name: SMD GASKET
2. WHL: 404050
3. Product Characteristic

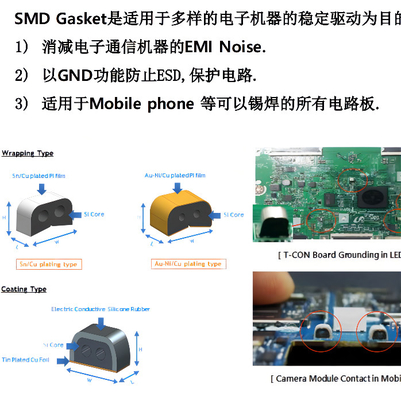

SMD GASKET is a surface mount technology utilizes surface mounter ( SMD M/C) PCB mounting and is available as a ground terminal and the mount an electric/electronic devices,and EMI noise reduction products. SMD GASKET is suitable for the required flexibility, elastic recovery, heat resistance and electrical conductivity tanwol products.

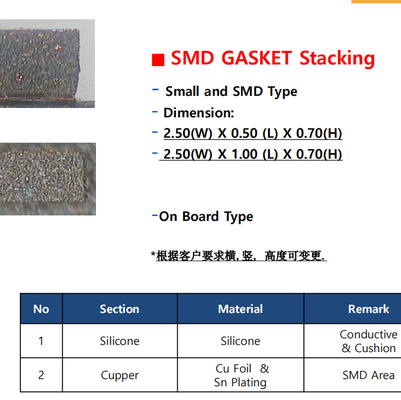

4. Material and Finish
| NO | ITEM | Material | Plating |
| 1 | Silicone | Silicone | |
| 2 | PI Film | Sn plating |
|
PRESS |
NO BURR |
| PLATING | NO Discoloration |
| Contact Resistance | 50mΩ (Max.) |
| After the test | 100mΩ (Max.) |

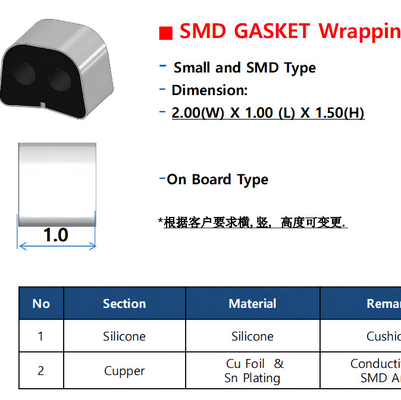

Drawing

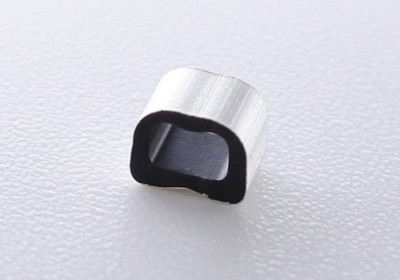

· Hollow type can be manufactured up to a thickness of 0.7mm.
· Solid type can be manufactured up to 0.5mm thick and 1.0mm wide.
· Innovative product with soft silicone rubber properties and conductive metal properties at the same time.
· Improved EMI shielding and grounding performance due to thicker conductive surface layer.
· Improved corrosion resistance and reliability by not exposing the copper layer to outside air.
· Adjusting the hollow size and shape to soften the gasket minimizes stress on and improves adhesion to PCB.
· Metal surface layer is possible even when the silicone rubber core is thin, improving the disadvantage of its hardness when the silicone rubber is thick.
· Easy to adjust the shape, number, and thickness of the core hollow.
