Product Details:
|
| Industry Type: | RF Cable | Cable Length/Cable Color: | As Requested |
|---|---|---|---|
| Bandaging Materials: | PVC Pipe | Applications: | Automobile, RF, Coaxial Cable RF Cable |
| Cable Type: | Single Shield Cable/double Shield Cable/ Non-shield Cable | Service: | OEM/ODM Car RF Cable |
| QC Test: | 100% Electrical And Electricity Performance Testing | Advantages: | Manufacturing Factory, Short Lead Time, High Quality |
| High Light: | PVC Wire Harness Cable Assembly,GPS Wire Harness Cable Assembly,RF antenna extension cable |
||

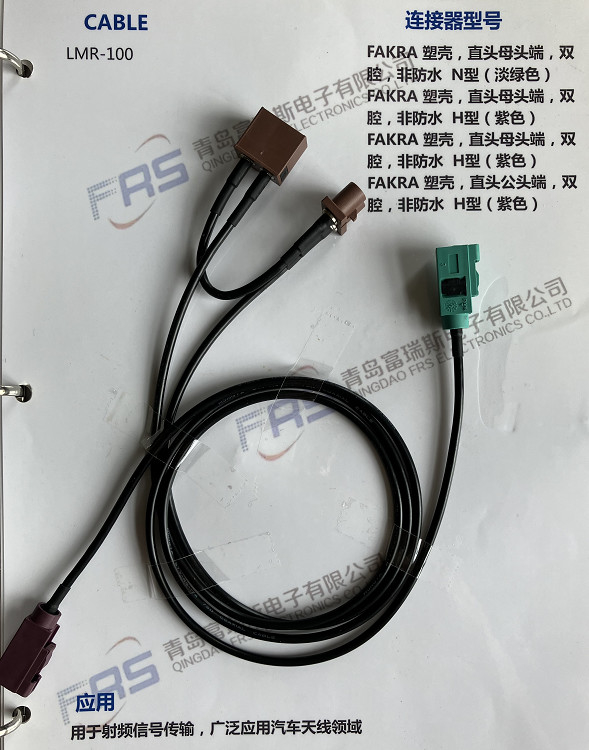

| Product Type | Coaxial cable assembly wiring harness |
| Model Type | FAKRA Z to Z-2M |
| Diameter | ∅2.8mm |
| Cable Material | Pure copper |
| Frequency Range | DC 0~4GHz(50Ω);DC 0~2GHz(75Ω) |
| V.S.W.R | ≤1.5 |
| Impedance | 50Ω,75Ω |
| working voltage | 335V r.m.s at sea level |
| Working current | ≤1A DC |
| insulation resistance | 1000MΩ MIN |
| contact resistance | Center Contact ≤6MΩ Outer Contact ≤1MΩ |
| Temperature | -40ºC~+105ºC |
| Salt spray | >48H |
| Cable type: | RG178/RG316/RG174 or customizable |
| Longht | 1M OR OTHER |
| Connector | Fakra Z female or customizable |
| Fakra Z male or customizable |
FAQ:
Q1: What we can do for you?
Answer:
FRS services a variety of industries, focusing on: MEDICAL
In an industry where lives are literally on the line, failure is not an option. FRSr's interconnect systems help CT Scanners, medical monitors, IV pumps, defibrillators, LED equipment, and oral surgeon and dental equipment function reliably.
MILITARY & AEROSPACE SYSTEMS
FRS plays a vital role in creating a safer world. We've manufactured and tested high-reliability products and systems in support of commercial and military aviation, defense operations, and communications. We are relied on for designing and deploying robotics, avionics, and launching control solutions that protect our service men and women, allowing them to complete their important work.
COMMERCIAL SYSTEMS
Security Scanners, Hand Held Portable Data Collection Devices, GPS Systems, Industrial Test Equipment as well as Classified Security Systems are just some of the sectors where FRS's interconnect solutions are found.
CONSUMER ELECTRONICS
Drones, Toy for children, robot, speaker.etc
Q2: What information do you need if we want to custom wire harness or cable assembly?
Answer: Please send your drawing or sample to us.
Q3: If we don't have drawing or sample, just a picture, what information do you need?
Answer:If so , you need to tell us the model about connector and cable UL number with AWG, and the length of cable, last how to contact each wire to connector.
Q4: When we can get the sample? how about the cost?
Answer: Sample will be sent in 3-5 days for free if buyer agree to pay for shipping cost.
Q5: What's your delivery time?
Answer: Our normal delivery time is 10-15 days, if urgent, we will put in prior.
Q6: How we can trust your quality?
Answer: All material in ROHS, Reach standard, 100% test before delivery.
Q7: What's your price?
Answer: Our price is base on different market and can be negotiated.
Q8: What's your after-sale service?
Answer: We provide technique support for you and help you improve your design or drawing, also can help you solve your customer problem.
Q9: Why choose us?
Answer:
1.20 years factory experience.
2.Good reputation and guarantee: replace 1:1 or 100% refund.
3.Control quality strictly by QC and test before delivery.
4. Our tenet: Customer first and response fast.
5.Good and fast service: one seller to one customer.
6.Delivery on time as contract
7.Short Lead time, high quality 100% Electrical and electricity performance testing
Factory Show:
.
Our Services
1-Your Visit is highly welcomed.
2- Sample is Free, Shipping Cost should be covered by Buyer.
3- Prompt production & delivery
4- Customized specifications accepted
5- OEM & ODM service.
6- With our own factory, the products is in competitive price with high quality
7.Accept OEM order and customized order
