Product Details:
|
| Material: | Silicone | PL Film: | Sn Plating/Au Plating |
|---|---|---|---|
| Shape: | Flat Gasket,Ring Gasket, Corrugated Gasket,as You Need,according To Your Drawings | Wide: | 20mm Or Custom Size |
| High: | 145mm,Standard Or Customize | Length: | 130mm As Drawing |
| Application: | Computers,wall And Roof, Automobile,LCD Etc | ||
| High Light: | silicone smt emi gasket,au plating smt emi gasket,20mm shielding gasket |
||

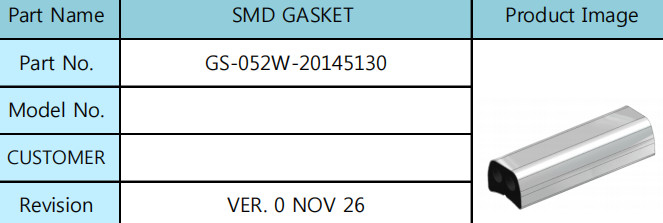

1. WHL: 20145130
2. Product Characteristic
SMD GASKET is a surface mount technology utilizes surface mounter ( SMD M/C) PCB mounting and is available as a ground terminal and the mount an electric/electronic devices,and EMI noise reduction products. SMD GASKET is suitable for the required flexibility, elastic recovery, heat resistance and electrical conductivity tanwol products.
3. Material and Finish
| NO | ITEM | Material | Plating |
| 1 | Silicone | Silicone | |
| 2 | PI Film | Sn plating |
|
PRESS |
NO BURR |
| PLATING | NO Discoloration |
| Contact Resistance | 50mΩ (Max.) |
| After the test | 100mΩ (Max.) |

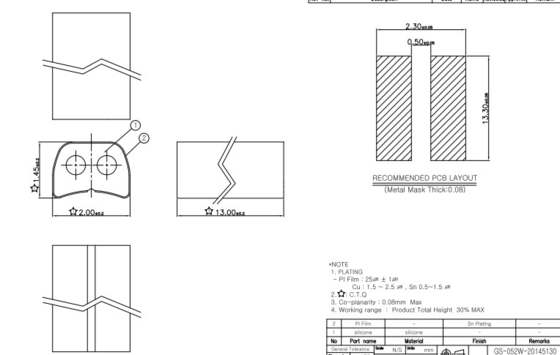

4 Drawing
|
Check List
|
- It must be attached on REEL and Vinyl bag .
|
0 |
|
MSL SPEC attach
(MSL: MOISTURE SENSITIVE LEVEL)
|
- It must be attached on REEL and Vinyl bag .
|
|
|
Lead Free Mark attach
|
It must be attached on REEL and Vinyl bag .
|
|
|
Keep Dry" LABEL attach
|
- The label of "Keep Dry" must be attached on the
product which is under MSL 1
|
|
|
Packaging Specification
|
- Should be applied at least MSL 2.
- The material of REEL should be plastic.
(Don't use paper REEL.)
|
|
|
REEL sealed package
|
- Must be sealed.
|
|
|
REEL COVER TAPE compression method
|
Use a heat compression method
|
|
|
Packing flow
|
Reel →Put in the silica gel → Seal the bag→ OUT BOX
|
Adhesion Method
· Innovative product with soft silicone rubber properties and conductive metal properties at the same time.
· Improved EMI shielding and grounding performance due to thicker conductive surface layer.
· Improved corrosion resistance and reliability by not exposing the copper layer to outside air.
· Adjusting the hollow size and shape to soften the gasket minimizes stress on and improves adhesion to PCB.
· Metal surface layer is possible even when the silicone rubber core is thin, improving the disadvantage of its hardness when the silicone rubber is thick.
· Easy to adjust the shape, number, and thickness of the core hollow.
