5x6mm EMI Foam Gasket , Plating Fabric Over Foam Emi Gasket Elastic Recovery For Electricity Production

Overview

• SMT EMI shielding gasket is a grounding pad that attenuates electromagnetic noise generated inside electronic devices and protects the circuit from electrical surges.

• Reflow soldering is possible up to 260℃ by using material with excellent heat resistance.

• Packaged with reel tape to enable automatic surface mounting.
• Can be used as a touch switch gasket, a touch sensor gasket, etc.

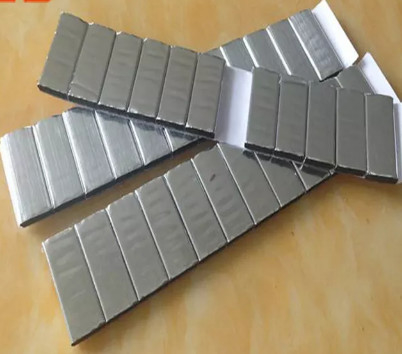

Pictures

Features

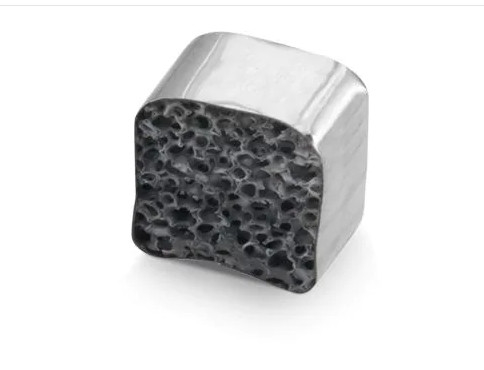

• Stable cube shape, soft & elastic using a sponge core.
  - Manufactured in a variety of sizes compared to silicone or metal ground contacts
  - Neither bent nor broken like a finger strip
  - No fear of hardening or generating siloxane like silicone-core type
  - Soft sponge material does not bend PCB nor deform the device
• Excellent electrical conductivity and low surface resistance
• Excellent resilience with adjustable hardness, free from bent or broken problem
• SMT(surface mounting) available and manual soldering compatible
• RoHS Compliant, UL94V-0, Halogen Free

Details

Specification

Applications



PCB Ground & EMI Shielding





• SMT Gasket is used for EMI shielding and grounding by attaching it to PCB of LCD module. Several pieces of SMT Gasket are used on PCB to maximize EMI shielding and grounding effectiveness. Their positions on PCB are reflected in PCB circuit design phase.
• Provided in reel typed career packages suitable for SMT.



Touch Sensor Gasket/Touch Switch Gasket







• Touch sensor gasket (touch switch gasket) functions as an electrode connecting display panel and PCB using electrostatic touch input method. It is suitable for touch switches of home appliances and industrial devices.
• SMF gasket is installed with automatic surface mounting while spring contact and touch rod method require manual soldering.
• Cost saving is expected by replacing the expensive touch grid method.
• This gasket does not stress PCB/Panel due to its elasticity and has high corrosion resistance.



TERMS OF GUARANTEE & ATTENDED POINT IN CUSTODY

• 1) Keep the product at room temperature and humidity.(25±10℃, Less than 75%)
• 2) Avoid contact with air and moisture when kept products.
• 3) Avoid direct sun light and no flammables when kept products.
• 4) Keep it to prevent damage to the appearance and shape.
• 5) Be careful not to be a high-temperature, high-humidity environment after opening the product.
• 6) Be careful not to contact with chemical and organic materials.
• 7) Do not touch the product with bare hands.
• 8) The warranty period of product is 6 months after delivery.

DECISION



1) E-SONG EMC Co., Ltd(Party ”B” as below) encloses the inspection report when shipped.

2) One Lot is for one delivery of one model in principle.

3) The pass and fail determination of Lot is applied by "KS Q ISO 2859-1 sampling check list".

4) The inspection level and the AQL are determined by mutual agreement.(Standard : G-II, 0.65)

5) If DEVIALET(Party “A" as below) fail to pass the import inspection, “A" should inform “B" of nonconformance.

Then, “B" should notify the improvement measures to “A" within 5 days.

6) Failed Lot should be returned but it is available to accept selected products in accordance with circumstances.

7) In case of any other unexpected situations, it must be solved by mutual agreement.



GENERAL PACKING STANDARD



1) Label the hem.

2) The carton box contains an appropriate amount of SMF cylinders.

3) Fill in the plastic on the back cover with cushioning material.

4) The box is sealed with OPP tape, H-type, and the box is labeled as available.

5) Packaging method (as shown in the figure)
